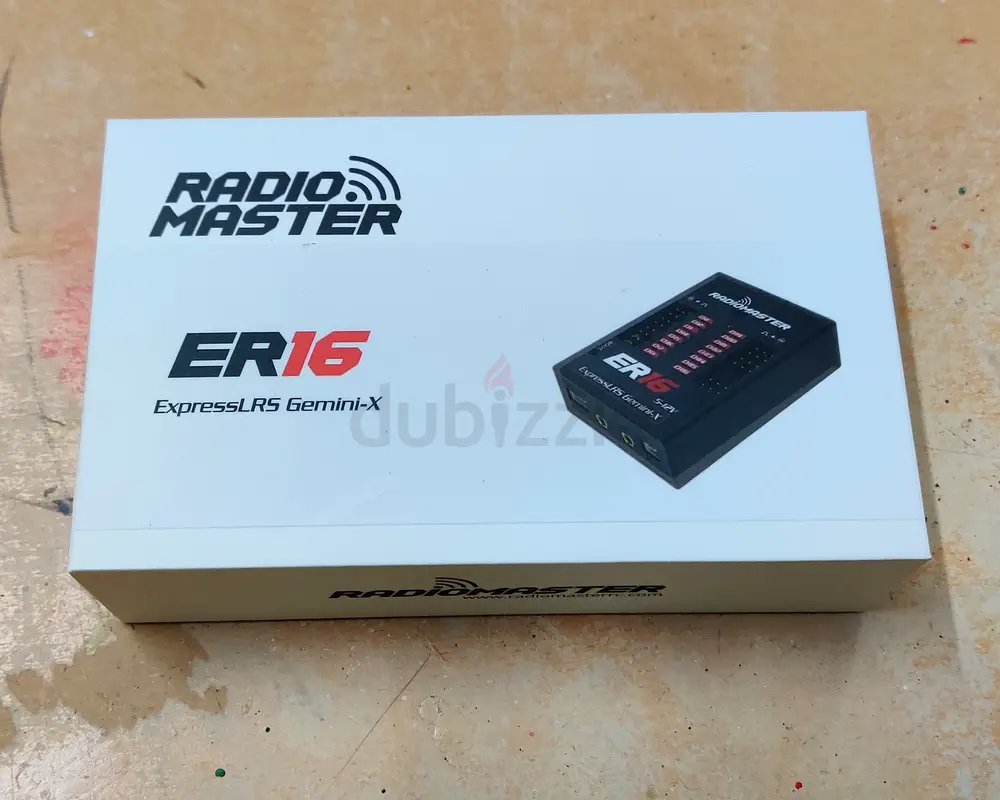

RadioMaster ER16 ExpressLRS Gemini-X 16CH PWM Receiver (New in Box) with Safety Switch

Name: RadioMaster ER16 ExpressLRS Gemini-X 16CH PWM Receiver (New in Box) with Safety Switch
Brand: Other
Price: 345 AED
Availability: InStock

AED 345

Mansoor Yousuf

4.1

23 items live

Item Details

Age

Brand New

Condition

Perfect inside and out

Usage

Still in original packaging

Brand

Other

Posted on: 12th September 2026

Description

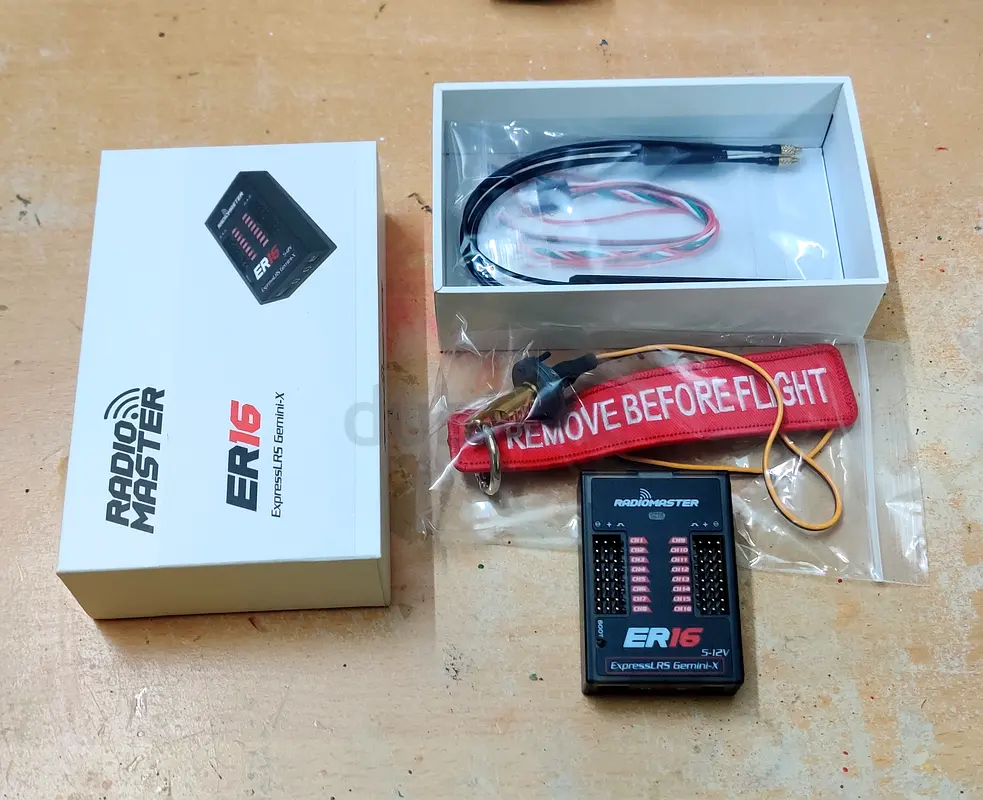

I'm selling a brand new RadioMaster ER16 ExpressLRS Gemini-X 16 Channel PWM receiver with high quality safety switch. It is still sealed in its original box. I bought it for a build but never used it — flawless condition and ready to install. Compatible with ExpressLRS systems, it offers a compact form factor, low latency, and reliable telemetry. Comes with original packaging and all included accessories as new. Suitable for large expensive rc aircraft and jets.

The ER16 is built for large-scale aircraft that demand redundancy, robust power handling, and reliable system integration. Designed with redundancy at every critical point—RF link, power input, and system control—it delivers a stable, high-integrity connection for complex fixed-wing platforms.

Features
ExpressLRS Performance: Low latency, high reliability, and excellent link quality with flexible configuration options.
Dual-Band Gemini X 2.4GHz and Sub-G 900MHz: Simultaneously operates on both frequency bands to maintain a stable RF link in challenging environments.
16 PWM Outputs + Serial Support: Full 16-channel PWM output with dedicated bidirectional UART and serial interfaces for system integration and expansion.
Dual XT30 Redundant Power Input (Isolated): Two isolated XT30 inputs support independent redundant power sources with separate telemetry reporting for each battery. If one power source fails, the system continues operating from the remaining supply without interruption.
External Safety Switch (SW Port): Dedicated interface for pull-tab or external safety modules, allowing the system to remain inactive until intentional power-up for safer handling and operation.
Top-Mounted Servo Outputs: PWM connections are positioned on the top side for cleaner wiring, easier access, and simplified installation.
PWM Signal Amplification: Amplified PWM outputs help maintain signal quality over long servo leads and extension cables. They also improve compatibility with larger, high-torque servos, helping ensure reliable control signal delivery throughout the aircraft.
Independent Multi-Source Voltage Telemetry: Monitor up to four power sources simultaneously using dedicated ADC channels: EXT-V (up to 70V), receiver supply voltage (V-PWM) (up to 12V), XT30-1 input voltage (up to 12V), and XT30-2 input voltage (up to 12V).
External Voltage Telemetry Connector: Dedicated connection for direct main-pack voltage monitoring.
External UART Port: Dedicated interface for telemetry devices, sensors, and system expansion.
Wi-Fi Updates & WebUI: Configure and update directly without disassembly.
Robust MMCX Antenna Connectors: Secure, serviceable antenna connections for easy maintenance and long-term reliability.
Durable Injection-Molded Housing: Designed for structural strength and consistent protection in large airframes.
Application: Designed as a PWM receiver for large fixed-wing aircraft, especially where redundancy and higher channel counts are required.
Compatibility: Compatible with all ExpressLRS transmitters and modules, including radios with built-in ELRS.

Only Serious buyers who know the value of this item contact me. I will not entertain any hagglers or time wasters. Thank you.
